Fluke 1664FC/FVF Installation Multifunction Tester with FEV300 EV Adaptor TY2. Test to local regulations, protect appliances, and share results in real time via smartphone.
Fluke 1664 FC Datasheet
Fluke 1664FC/FVF Multifunction Tester with FEV300 EV Adaptor TY2 – Accelerate Your Installations
The Fluke 1664FC/FVF, now paired with the FEV300 EV Adaptor TY2, is a versatile multifunction installation tester designed to streamline your testing process. Perfectly suited for EV charger installation and compliance testing, this powerful duo ensures quick, efficient, and accurate results while meeting all local regulations.
Protect Appliances with Insulation PreTest
The Fluke 1664FC/FVF is the only multifunction tester equipped with “Insulation PreTest,” a feature that prevents accidental appliance damage during testing. If an appliance is connected to the system under test, the tester halts the insulation test and triggers a warning—saving you from costly errors.
Optimized Testing with Auto Test
Reduce manual connections and testing time with Auto Test. This feature runs up to seven standard installation tests in one sequence, ensuring faster, more accurate results. Save time, minimize errors, and complete installations with maximum efficiency.
Enhanced Collaboration with Fluke Connect®
Share test results in real time using Fluke Connect® via your smartphone. This allows you to save data to the cloud, share measurements with your team through ShareLive™ video calls, and get approvals instantly—no need to leave the job site.

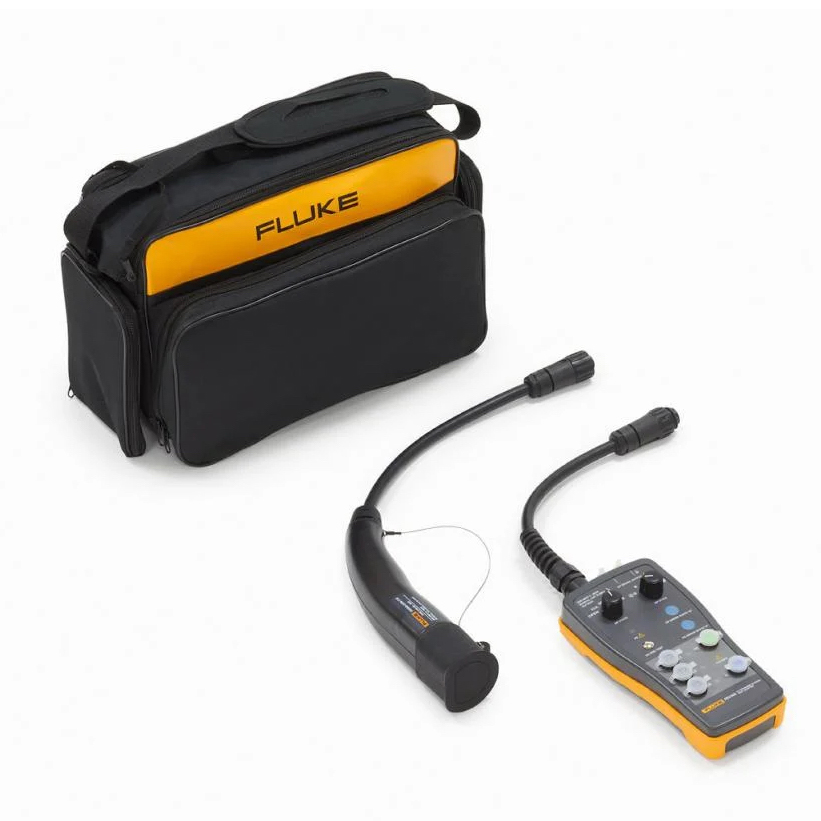

EV Charger Testing with the FEV300 EV Adaptor TY2
The included FEV300 EV Adaptor TY2 is tailor-made for testing electric vehicle charging stations. It ensures compliance with IEC 61851-1 standards, making it an essential tool for EV charger installers. Combined with the Fluke 1664FC/FVF, it offers unparalleled accuracy and reliability for modern charging infrastructure.
Cloud Storage for Easy Data Access
With Fluke Cloud™ storage, access and retrieve test results from any location—whether you’re in the office or on-site. Import data into Fluke DMS for streamlined certificate generation and reporting, all while benefiting from world-class data protection.
Key Features Include:
- Lightweight and compact design (less than 1.3 kg) with a padded neck strap for hands-free use.
- Rotary dial with clear function selection—no complex menus.
- Advanced RCD testing, including trip current and trip time in parallel.
- Z-max memory for effortless loop test evaluation.
- Zero adapter for quick and accurate test lead compensation.
- Integrated EV charger testing capabilities with the included FEV300 EV Adaptor TY2.
- Dual-display for simultaneous readings, including PEFC, PSC, and loop impedance.
- Large backlit display with clear symbols and a wide viewing angle for easy readability.
The Fluke 1664FC/FVF and FEV300 EV Adaptor TY2 bundle is the ultimate testing solution for electricians and EV charger installers. Streamline your workflow, ensure compliance, and deliver high-quality installations with confidence.
Order your Fluke 1664FC/FVF with FEV300 EV Adaptor TY2 today and take your testing to the next level.
| Weight | 1.5 kg |
|---|
Be the first to review “Fluke 1664FC/FVF KIT with FEV300 EV Adaptor TY2”
You must be logged in to post a review.
| AC voltage measurement | ||
| Range | 500 V | |
| Resolution | 0.1 V | |
| Accuracy 45 Hz – 66 Hz | 0.8% + 3 | |
| Input impedance | 360 kΩ | |
| Overload protection | 660 V rms | |
| Continuity testing (RLO) | ||
| Range (autoranging) | 20 Ω / 200 Ω / 2000 Ω | |
| Resolution | 0.01 Ω / 0.1 Ω / 1 Ω | |
| Open Circuit Voltage | >4 V | |
| Insulation resistance measurement (RISO) | ||
| Test voltages | 50-100-250-500-1000 V | |
| Accuracy of tTest voltage (at rated test current) | +10%, -0% | |
| Test voltage | 50 V 100 V 250 V 500 V 1000 V |
|
| Insulation resistance range | 20 MΩ /50 MΩ 20 MΩ / 100 MΩ 20 MΩ / 200 MΩ 20 MΩ / 200 MΩ / 500 MΩ 20 MΩ / 200 MΩ / 1000 MΩ |
|
| Resolution | 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ / 1 MΩ 0.01 MΩ / 0.1 MΩ / 1 MΩ |
|
| Test current | 1 mA @ 50 kΩ 1 mA @ 100 kΩ 1 mA @ 250 kΩ 1 mA @ 500 kΩ 1 mA @ 1 MΩ |
|
| Loop and line impedance (ZI) | ||
| Range | 10 Ω / 0.001 Ω / High current mΩ mode | |
| Resolution | 0.01 Ω / 0.1 Ω / 1 Ω | |
| Prospective earth fault current, PSC test | ||
| Range | 1000 A / 10 kA (50 kA) | |
| Resolution | 1 A / 0.1 kA | |
| Computation | Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively. | |
| RCD testing, RCD types tested | ||
| RCD Type | AC¹ G²,S³ |
|
| Model 1664 | A, AC, B5, S | |
| Notes | ¹Responds to AC ²General, no delay ³Time delay 4Responds to pulsed signal 5Responds to smooth DC signal |
|
| Tripping speed test (ΔT) | ||
| Current settings¹ | 10-30-100-300-500-1000 mA – VAR 10-30-100 mA |
|
| Multiplier | x ½, x 1 x 5 |
|
| Measurement range | RCD Type G | 310 ms 50 ms |
| RCD Type S | 510 ms 160 ms |
|
| Notes | ¹1000 mA type AC only 700 mA maximum type A in VAR mode VAR mode not available for type B. |
|
| RCD/FI-Tripping Current Measurement/Ramp Test (IΔN) | ||
| Current range | 30% to 110% of RCD rated current¹ | |
| Step size | 10% of IΔN² | |
| Dwell time | Type G | 300 ms/step |
| Type S | 500 ms/step | |
| Measurement accuracy | ±5% | |
| Specified trip current ranges (EN 61008-1) | 50% to 100% for Type AC 35% to 140% for Type A (>10 mA) 35% to 200% for Type A (≤10 mA) 50% to 200% for Type B ²5% for Type B |
|
| Notes | ¹30% to 150% for Type A IΔN > 10 mA 30% to 210% for Type A IΔN = 10 mA 20% to 210% for Type B |
|
| Earth Resistance Test (RE) | ||
| Range | 200 Ω / 2000 Ω | |
| Resolution | 0.1 Ω / 1Ω | |
| Frequency | 128 Hz | |
| Output Voltage | 25 V | |
| Phase Sequence Indication | ||
| Icon |  Phase Sequence indicator is active. |
|
| General Specifications | ||
| Size (L x W x H) | 10 x 25 x 12.5 cm | |
| Weight (incl. batteries) | 1.3 Kg | |
| Battery size, quantity | Type AA, 6 ea. | |
| Sealing | IP-40 | |
| Safety | Complies with EN61010-1 Ed 2.0 (2001-02), UL61010, ANSI/ISA –s82.02.01 2000 and CAN/CSA c22.2 No. 1010 2nd edition | |
| Overvoltage | CAT III / 500V; CAT IV 300V | |
| Performance | EN61557-1 to EN61557-7 Second Edition and EN61557-10 Second Edition | |
