Kyoritsu 6205PRO Wireless PAT Tester | AS/NZS 3760

Test and tag shouldn’t slow down the job

Ask any electrician, test-and-tag contractor or facility maintenance team what eats their day and “paperwork” will come up before “faulty appliances” almost every time. AS/NZS 3760 compliance testing is non-negotiable — insulation resistance, earth continuity, RCD trip times and load current all need to be checked, recorded and tagged correctly, on every appliance, every time. The problem isn’t the testing itself; it’s what happens after the test. Results scribbled on a clipboard, retyped into a spreadsheet back at the office, tags printed later, and a compliance record that’s only as good as whoever transcribed it correctly.

A tester that’s accurate but slow to work with, or one that locks results inside a proprietary workflow, adds friction to a job that should be routine. For contractors billing by the appliance, and for facility managers who need an audit-ready record without chasing technicians for paperwork, the instrument itself needs to keep pace with the job — not become the bottleneck.

Built for AS/NZS 3760 testing, from bench to site

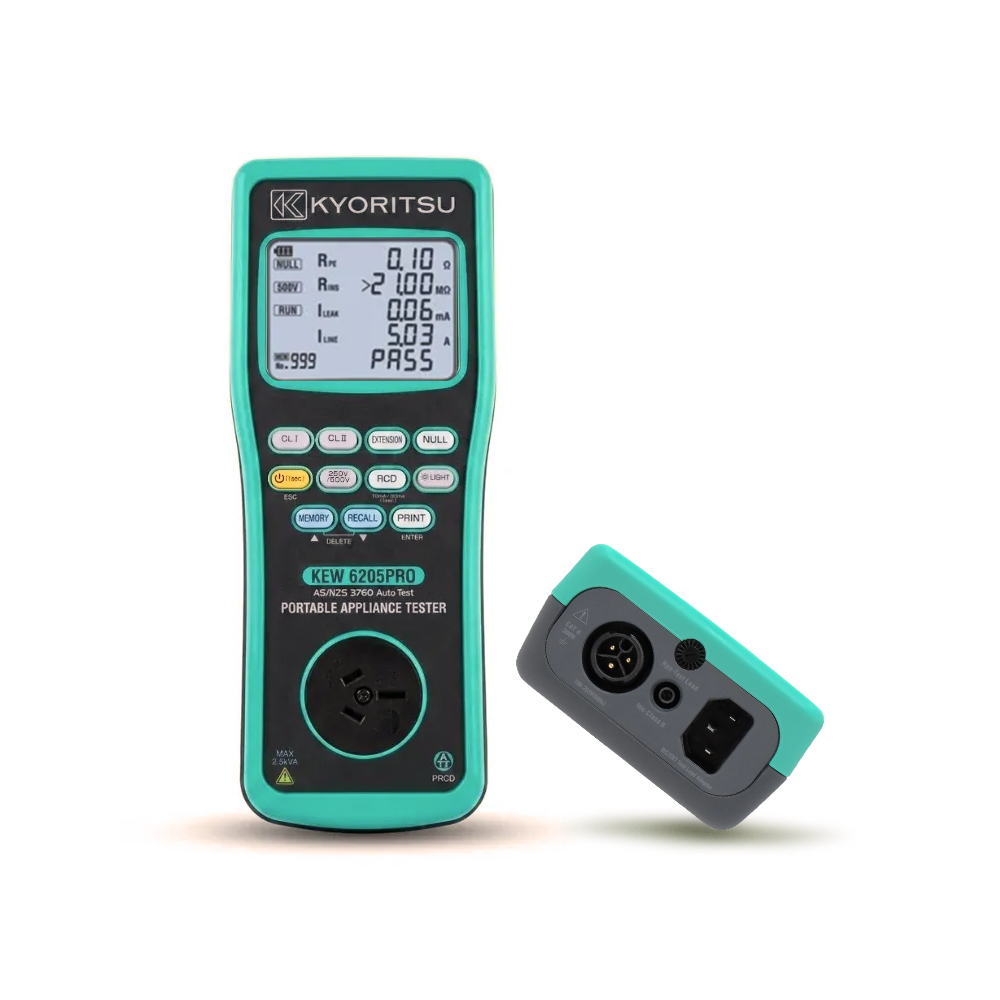

The Kyoritsu 6205PRO is a hand-held, battery-operated portable appliance tester purpose-built for testing and tagging Class I and Class II appliances, extension leads, and portable RCDs to AS/NZS 3760. It covers the full compliance sequence in a single unit: mains voltage indication, protective conductor (earth) resistance, insulation resistance at 250V and 500V, load current and leakage current on power-on testing, and RCD trip-time testing at 10mA and 30mA.

What sets the PRO apart from a standard PAT tester is how it delivers a verdict and moves the result off the instrument. Every test returns a clear pass/fail result on a colour backlit display — green for a pass, red for a fail — so there’s no ambiguity reading results in poor light inside a switchboard room or under a bench. Built-in wireless connectivity streams that result out of the tester as soon as the test completes, which means the value read on the 6205PRO is the value that ends up on the record, without a technician re-keying numbers from memory at the end of a long day.

For teams already using Field Efficient for their compliance reporting, the 6205PRO’s wireless output pairs straight into that workflow alongside meters from other brands in the kit — one report, built from what the tester actually measured, rather than a second app tied to a single instrument.

Key benefits and features

Full AS/NZS 3760 test sequence in one unit. The 6205PRO performs insulation resistance (250V/500V), protective earth resistance, load current, leakage current (power-on test) and RCD trip-time testing without swapping instruments — useful when a single job covers everything from Class II power tools to Class I appliances with a protective earth to verify.

Colour pass/fail backlight. Results display as a clear red or green verdict on the backlit screen, so a technician working in a dim plant room or roof space doesn’t need to interpret a numeric readout to know whether an appliance is safe to return to service.

Wireless connectivity (Bluetooth/Wi-Fi). Results transfer out of the tester without a cable, reducing the retyping and manual data entry that’s the most common source of errors in test-and-tag records — and the most common reason compliance paperwork takes longer than the testing itself.

Built-in isolation transformer for RCD testing. Portable RCDs can be trip-time tested (10mA and 30mA, single and 5x rated current) without risking a nuisance trip on the building’s main switchboard RCD — a genuine time-saver on occupied sites where you can’t afford to take down power to test a power board.

Memory for up to 999 results with automatic storage. Test results log automatically as they’re taken, giving a running record for the day’s testing without needing a separate logbook.

15A-rated test lead supplied. The instrument ships with a 15A test lead, matching the load-carrying capacity of the sockets and circuits typical of commercial and light-industrial test-and-tag work. (Note: the load current measurement range itself is specified to 10.00A rms — see the specifications table below.)

Printer-compatible for on-site tag printing. Pair the 6205PRO with the Kyoritsu 6205PRO Print Kit to print compliance tags on site, straight after a pass result, instead of batching tag printing for later.

Compact and genuinely hand-held. At 261 x 104 x 57mm and around 930g including its six AA batteries, the 6205PRO is light enough to carry through a full day of site work without adding meaningful bulk to a tool bag.

Where the 6205PRO earns its keep

Electrical contractors and test-and-tag technicians. The core use case — testing Class I and Class II appliances, extension leads and portable RCDs against AS/NZS 3760, then tagging the result on the spot. The wireless output and colour verdict display are built around volume testing, where every second saved per appliance adds up across a full building.

Industrial and facility maintenance teams. Scheduled test-and-tag rounds across a factory floor, warehouse or commercial premises benefit from the built-in isolation transformer when testing portable RCDs and power boards without disrupting other equipment on the same circuit.

Solar installers and multi-discipline trade businesses. Where test-and-tag sits alongside other compliance work (solar, EV charging, general electrical), having PAT results captured wirelessly and fed into a single reporting workflow — rather than a standalone app per instrument — keeps the admin side of the business manageable as the service list grows.

Facility managers and safety officers. For anyone responsible for keeping a compliance register current, an instrument that streams results out automatically reduces the risk of a gap in the record caused by a missed manual entry.

TAFEs, RTOs and training providers. A straightforward pass/fail workflow with a clear colour verdict makes the 6205PRO a practical teaching instrument for electrical trade training in test-and-tag procedure and AS/NZS 3760 requirements.

Why buy the Kyoritsu 6205PRO from Rapid-Tech

Rapid-Tech supplies genuine Kyoritsu instruments with access to Australian calibration and after-sales support, so your 6205PRO stays accurate and compliant throughout its working life — not just on the day it arrives. Our team can advise on the right accessories (including the Print Kit for on-site tagging) and on fitting the 6205PRO into a broader test-and-tag or multi-discipline compliance workflow. Get in touch for current availability and a quote.

Technical Specifications

What is the Kyoritsu 6205PRO used for? The Kyoritsu 6205PRO is a hand-held portable appliance tester (PAT tester) used to test and tag Class I and Class II electrical appliances, extension leads and portable RCDs to the AS/NZS 3760 standard. It measures earth continuity, insulation resistance (250V/500V), load current, leakage current and RCD trip times in a single battery-powered instrument.

Does the Kyoritsu 6205PRO test RCDs? Yes. The 6205PRO tests portable RCDs rated at 10mA and 30mA, running both a standard (x1) and 5x rated current (x5) trip-time test. A built-in isolation transformer allows RCD testing without tripping the building’s main switchboard RCD.

What insulation test voltages does the Kyoritsu 6205PRO support? The Kyoritsu 6205PRO tests insulation resistance at both 250V and 500V, across a measuring range of 0.00–20.00MΩ, covering the insulation test voltages most commonly specified for portable appliances under AS/NZS 3760.

How does the Kyoritsu 6205PRO transfer test results? The 6205PRO has built-in wireless connectivity (Bluetooth/Wi-Fi) that transfers results out of the instrument as each test completes, This eliminates the need for manual data entry into a separate compliance record or reporting application, such as Field Efficient.

What power source does the Kyoritsu 6205PRO use? The Kyoritsu 6205PRO runs on six LR6 (AA) 1.5V batteries, making it a fully portable, cordless instrument for on-site test-and-tag work.

Is the Kyoritsu 6205PRO suitable for AS/NZS 3760 compliance testing? Yes. The 6205PRO is designed specifically to comply with AS/NZS 3760 and covers the full in-service test sequence for portable appliances: earth continuity, insulation resistance, load and leakage current, and RCD trip-time testing.
