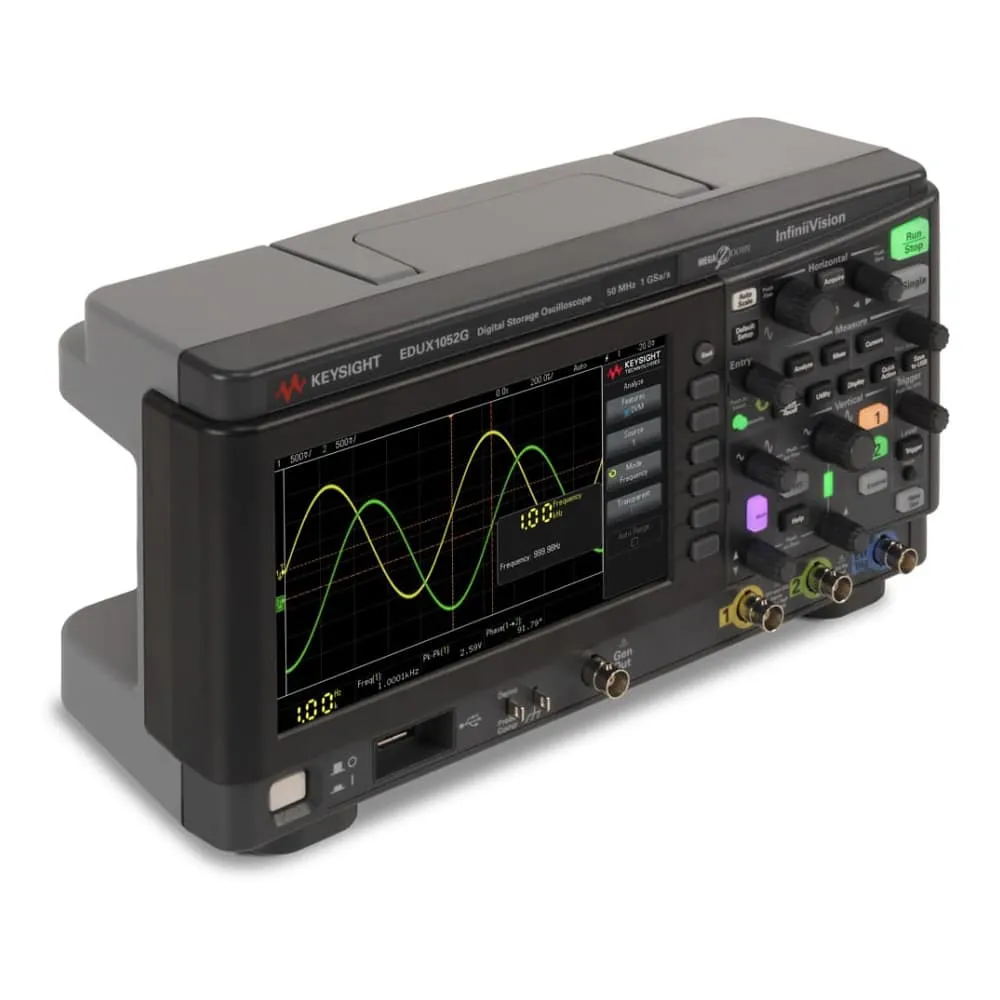

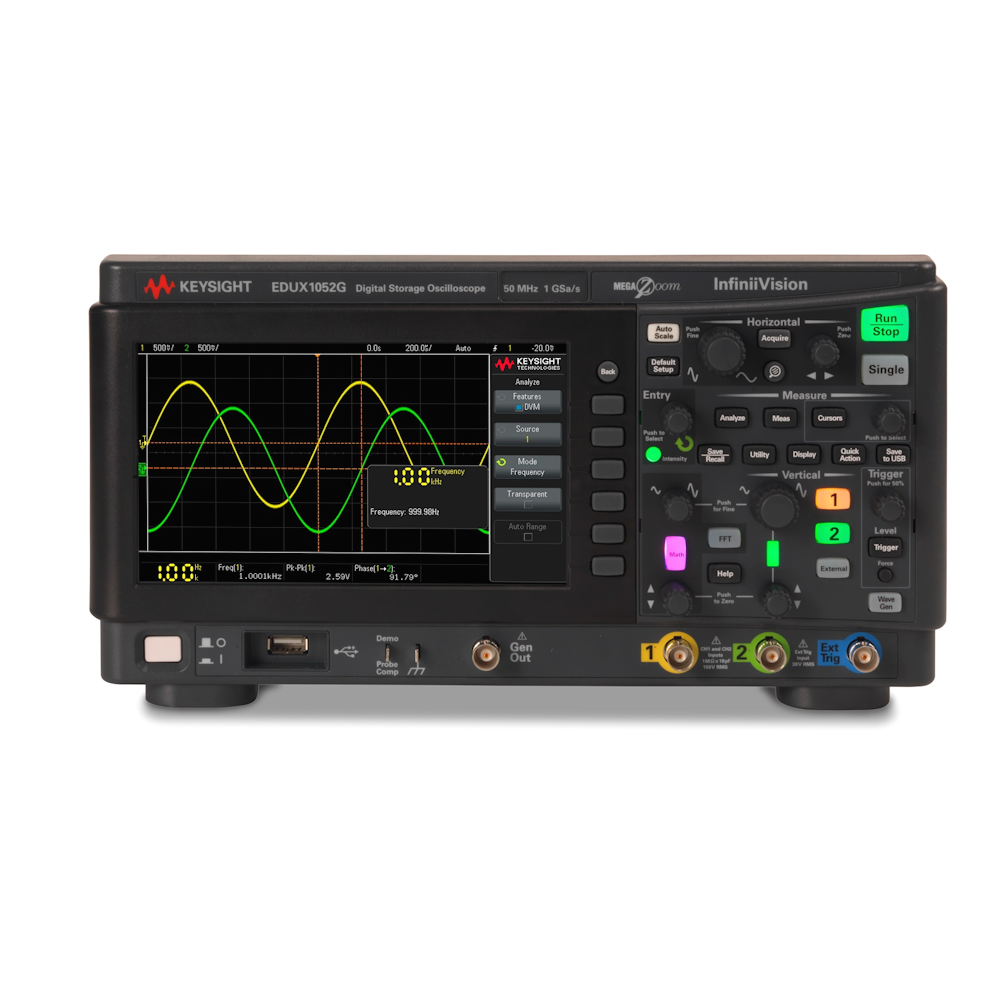

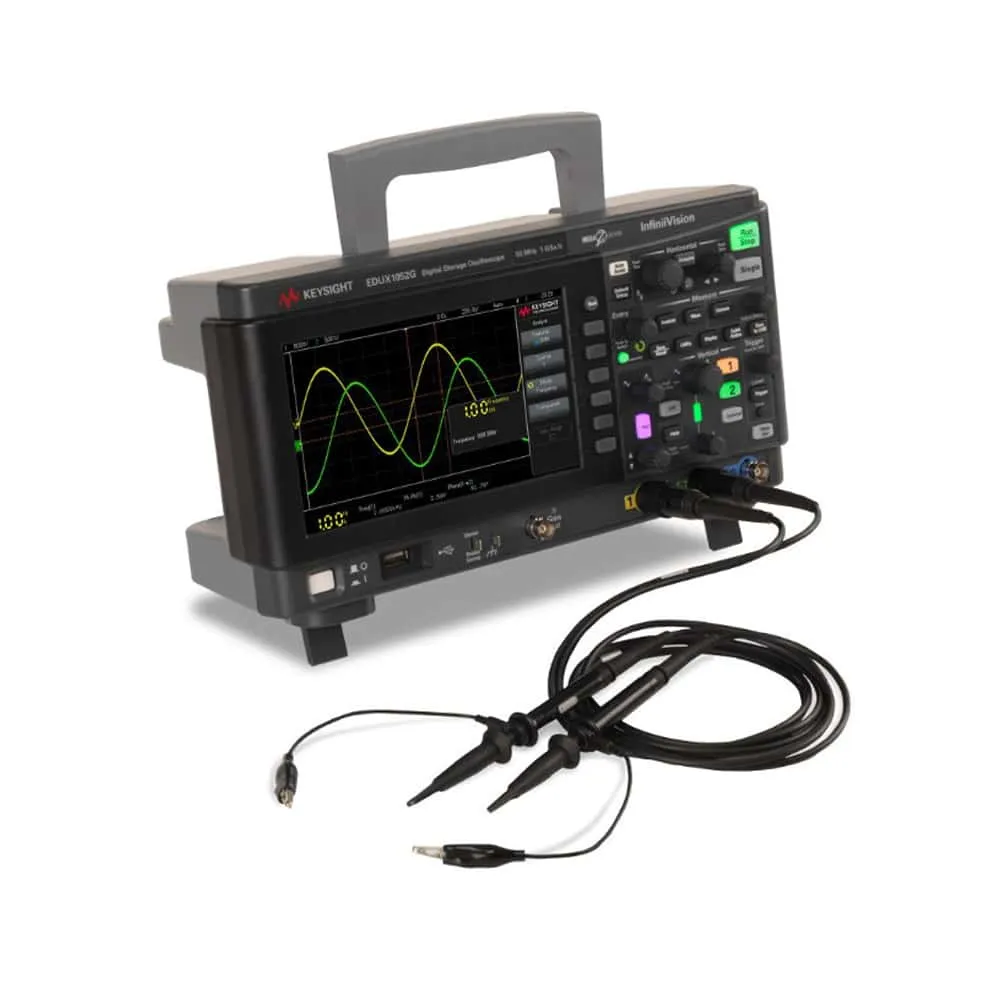

Keysight EDUX1052G Oscilloscope: 50 MHz, 2 analogue channels + Generator
$1,450.00 .( $1,595.00 inc. GST )
- 🎉 Save more when you spend more
- 5% off over $2000 + GST
- 10% off over $5000 + GST
*until 31st Dec 2025!
For all your equipment calibration needs, visit our MyCalibration website.
Free Delivery on orders over $1000
Shipping time may vary for certain products*
Product Enquiry
If you would like more information regarding this product, simply email us here.
Leading Technology in a Value-Priced Oscilloscope (EDUX models) EDUX1052G is a dual channel 50MHz oscilloscope that includes a 20-MHz function generator and is ideal for the education market.
These oscilloscopes provide a quality education for students and prepare them for industry with professional level instruments

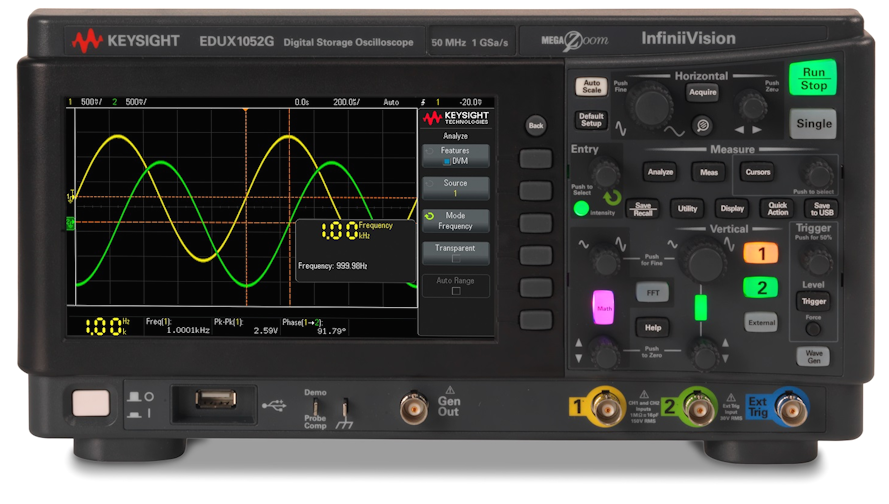

Keysight EDUX1052G Two Channel 50 MHz Oscilloscope with 20 MHz Function Generator
The Keysight EDUX1052G oscilloscopes leverages the same technology as their higher-end oscilloscopes for education customers allowing students to learn on the same hardware and software being used in leading R&D labs.
Don’t settle for less – set your students up for success.
- Built-in training signals that enable students to quickly learn to capture and analyze signals.
- The EDUX1052G includes 20-MHz function generator
- The educator’s resource kit includes dynamic teaching labs; a comprehensive lab guide; a tutorial written specifically for undergraduate students; and an oscilloscope fundamentals PowerPoint slide set for professors and lab assistants.
- IoT systems design applied courseware. The 1000 X-Series oscilloscope can be used with the U3800A Internet of Things(IoT) Systems Design Applied Courseware.
- Bode plots are fundamental concepts. The 1000 X-Series’ frequency response analyzer capability is the perfect tool to help students understand the gain and phase performance of passive RLC circuits or active op-amps (available in “G” model only).
- Optional DSOXBODE Bode plot training kit available.
- BenchVue Software with the BV0004B BenchVue Oscilloscope app (standard) lets you control and
visualize the 1000X-Series and multiple measurements simultaneously.
Specifications
| EDUX1052A | EDUX1052G | |
| Bandwidth | 50 MHz | 50 MHz |
| Analogue Channels | 2 + 1 (ext. trigger viewable as digital channel) | 2 + 1 (ext. trigger viewable as digital channel) |
| External trigger (or 3rd digital channel) | 1 | 1 |
| Maximum sample rate | 1 GSa/s (all channels) | 1 GSa/s (all channels) |
| Maximum memory depth | 200,000 points (all channels) | 200,000 points (all channels) |
| Waveform update rate | 100,000 waveforms per second | 100,000 waveforms per second |
| WaveGen | Not available | 20-MHz function generator |
| Bode plot | Not available | Standard |
| Serial Protocol Analysis | Standard: I2C, UART/RS-232 | Standard: I2C, UART/RS-232 |
| Integrated digital voltmeter | Standard | Standard |
| Frequency counter | Standard | Standard |
| Built-in training signals | Standard | Standard |
| Waveform math | Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter | Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter |
| Automatic measurements | 14 amplitude, 14 timing, and 4 pulse count measurements | 14 amplitude, 14 timing, and 4 pulse count measurements |
| Display | 7-inch TFT LCD WVGA | 7-inch TFT LCD WVGA |
| Connectivity | USB 2.0 (host and device), LAN | USB 2.0 (host and device), LAN |
| Weight | 5 kg |
|---|
