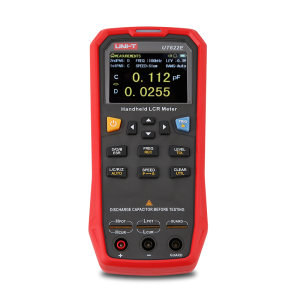

UNI-T UT622E – The Ultimate Handheld Precision LCR Meter for Detailed Inductance, Capacitance, and Resistance Readings

AUD $850.00 .( AUD $935.00 inc. GST )


For all your equipment calibration needs, visit our MyCalibration website.


Free Delivery on orders over $1000
Shipping time may vary for certain products*

Product Enquiry

If you would like more information regarding this product, simply email us here.

  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    Introducing the UNI-T UT622E – the ultimate handheld LCR meter for high-precision measurements. This versatile and powerful device, equipped with a user-friendly 2.8” TFT LCD display, is designed for all your detailed readings of inductance, capacitance, and resistance. Boasting unique features like the Recording Mode for real-time data statistics and the Tolerance Mode for component categorisation, it’s an indispensable tool for laboratories, production lines, and maintenance stations. With 3-terminal and 5-terminal test ports for a variety of tests and dual power supply options, experience uninterrupted, precise readings. Make the UT622E an essential part of your daily routine today and redefine precision.

    PDF download UT622 Datesheet

    SKU: UT622E Category: Tag:

    Introducing the UNI-T UT622E – the epitome of precision handheld LCR meters! This paramount device stands out with its superior functionality, unrivalled accuracy, and rapid operation. Fitted with a 2.8-inch TFT LCD display, the UT622E enhances user interaction with a display that’s simple to read and navigate.

    This versatile tool, the UNI-T UT622E, is an optimal choice for a wide range of applications. It is designed for detailed measurements and screening of inductance, capacitance, and resistance, making it perfect whether you’re in a lab, a production line, or a maintenance station. The UT622E ensures flawless service every time.

    A key highlight is the Recording Mode, facilitating dynamic data statistics and allowing you to obtain the Average, Maximum, Minimum, and Number of records without hassle. When it comes to component categorisation, the Tolerance Mode is invaluable. This mode allows you to set nominal value, tolerance limit, alarm, LED indicator, and counter, and even displays GO/NG discrimination results.

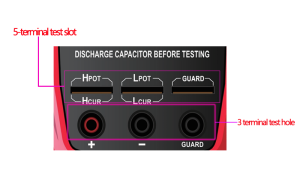

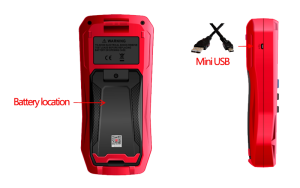

    The UT622E offers both 3-terminal and 5-terminal test ports, accommodating both convenient and high-precision testing needs. With a lithium-polymer battery and a USB power adapter, your operations are never interrupted, regardless of how long your workday lasts.

    Discover the essence of precision with the UNI-T UT622E. This tool truly embodies the concept of precise measurement. Purchase yours today and integrate precision measurement into your everyday workflow.

    MAX. TEST FREQUENCY: 100kHz

    ACCURACY: 0.1%

    DISPLAY COUNT: 99999

    MAX. TEST RATE: 20 times/s

    CONNECTIVITY: Mini-USB

    DISPLAY: 2.8” TFT LCD

    DCR: YES

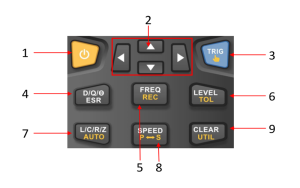

    Function panel introduction

    1. Power switch: long press to turn on, short press to turn off

    2. Arrow keys: select menu operation keys

    3. Trigger key: trigger/select trigger mode

    4. D/Q/θ/ESR: secondary parameter selection

    5. FREQ/REC: Frequency 100Hz, 120Hz, 1kHz, 10kHz, 100kHz selection and record mode button.

    6. LEVEL/TOL: 0.1V, 0.3V, 1V, switch and tolerance mode buttons

    7. L/C/R/Z/AUTO: main parameters and automatic identification.

    8. SPEED/P-S: Test speed and equivalent mode switch button

    9. CLEAR/UTIL: CLEAR clear and UTIL practical configuration menu.



    Weight 1 kg
