Hioki P2000 DC High Voltage Probe – Safe, High Precision, and CAT III 2000V Compatible for Solar Installations

Name: Hioki P2000 DC High Voltage Probe - Safe, High Precision, and CAT III 2000V Compatible for Solar Installations
Brand: HIOKI
SKU: Hio,P2000
Availability: InStock

$280.00 .( $308.00 inc. GST )

Product successfully added to the Quote List

For all your equipment calibration needs, visit our MyCalibration website.

Free Delivery on orders over $1000
Shipping time may vary for certain products*

Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.

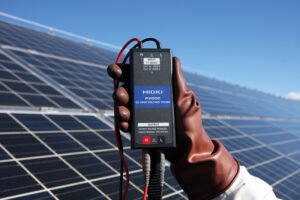

Boost the safety and accuracy of your solar installation inspections with Hioki’s DC High Voltage Probe P2000. Engineered for CAT III environments, this premium instrument can measure high voltages up to CAT III 2000 V, making it perfect for modern solar installations where voltages are becoming increasingly high. Compatible with Hioki clamp meters and digital multimeters, the P2000 is your go-to solution for efficient, reliable, and safe measurements. Stay ahead of the curve in solar power systems with Hioki’s P2000. Find out more about the P2000 and order yours today!

DC High Voltage Probe P2000 Brochure

SKU: Hio,P2000 Categories: HIOKI, Light/Lux Meter Tag: Hioki

Hioki DC High Voltage Probe P2000

Step up your safety game with Hioki’s DC High Voltage Probe P2000, perfectly designed for safe inspection of high-voltage solar installations. Meeting and exceeding everyday challenges, the P2000 allows high voltage measurements up to CAT III 2000 V.

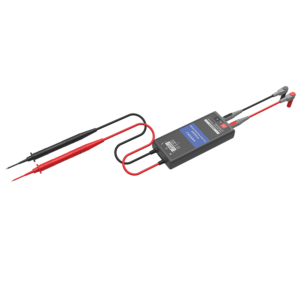

DC HIGH VOLTAGE PROBE P2000

Precision and Safety- All in One

With the growing need for efficient solar equipment, voltage measurements have become crucial. The P2000 is not only built to accommodate higher voltages but also ensures the protection of inspection workers. It easily connects to compatible Hioki clamp meters and digital multimeters (DMMs), enabling you to safely measure solar installations without interrupting the grid.

Why Choose Hioki P2000?

The P2000 is not an average measurement instrument. It’s designed to keep pace with the evolving solar power systems and EV batteries, which operate at ever-increasing voltages. With the P2000, you stay ahead of the curve, ready to take on new maintenance demands while ensuring your safety from high voltage hazards.

A Must for Solar Installations

Solar installations are categorized as CAT III environments, requiring an instrument that can withstand higher voltages. The P2000 was developed to meet these demands, providing reliable and safe measurements up to 2000 V.

The Future of Solar Installation Maintenance

As solar installation voltage continues to increase, having a reliable and safe measurement instrument is vital. The P2000 was developed with the future in mind, accommodating even higher voltages as larger and more efficient systems come into play.

Make Your Measurements Safer

The DC High Voltage Probe P2000, when connected to a compatible Hioki clamp meter like Hioki CM4371-50 AC/DC Clamp Meter or digital multimeter (DMM), ensures safe measurements of high voltages up to 2000 V.

Upgrade your solar installation measurements with the P2000. Experience not just precision, but also unparalleled safety with Hioki’s DC High Voltage Probe P2000. Order yours today!

DC HIGH VOLTAGE PROBE P2000

Weight	.2 kg

Specifications

Basic specifications

Accuracy guaranteed: 1 year

Maximum input voltage (*1)	DC 2000 V
Maximum rated line-to-ground voltage	1000 V (Measurement Category IV), Anticipated transient overvoltage 12000 V 2000 V (Measurement Category III), Anticipated transient overvoltage 15000 V
Input resistance	20 MΩ ±5.0% (between INPUT H and INPUT L, when OUTPUT terminal is open)
Overload protection	2200 V DC/2200 V AC (applied for 1 minute) (between INPUT H and INPUT L) 600 V DC/600 V AC (applied for 1 minute) (between OUTPUT H and OUTPUT L)
OUTPUT terminal	4 mm banana terminal
Operating temperature and humidity range	Temperature: -25°C to 65°C (-13°F to 149°F)Humidity: −25°C to 40°C (−13°F to 104°F): 80% RH or less (non-condensing) 40°C to 65°C (104°F to 149°F): Linearly reduces from 80% RH or less at 40°C (104°F) to 25% RH or less at 65°C (149°F) (non-condensing)
Storage temperature and humidity range	-30°C to 70°C (-22°F to 158°F) 90% RH or less (non-condensing)
Standards	EN 61010
Included accessories	Connection Cable Set L4943 ×1, Strap with buckle ×2, Strap ×1, Carrying Case C0205 ×1, Instruction Manual ×1, Operating Precautions ×1

Accuracy table for compatible instruments

Model	Combined accuracy
DT4261	Range 600.0 V: Combined accuracy ±0.5% rdg ±0.2 V Range 2000 V: Combined accuracy ±0.5% rdg ±5 V
CM4141-50 CM4371-50 CM4373-50 CM4375-50	Range 600.0 V: Combined accuracy ±1.0% rdg ±0.3 V Range 2000 V: Combined accuracy ±1.0% rdg ±3 V
DT4281 DT4282	Range 60.000 V: Combined accuracy ±0.8% rdg ±0.002 V (output rate 1/10) Range 600.00 V: Combined accuracy ±0.8% rdg ±0.02 V (output rate 1/10)
DT4252 DT4253	Range 60.00 V: Combined accuracy ±1.2% rdg ±0.05 V (output rate 1/10) Range 600.0 V: Combined accuracy ±1.2% rdg ±0.5 V (output rate 1/10)
DT4255 DT4256	Range 60.00 V: Combined accuracy ±1.2% rdg ±0.03 V (output rate 1/10) Range 600.0 V: Combined accuracy ±1.2% rdg ±0.3 V (output rate 1/10)
