Hioki CM4371-50 AC/DC Clamp Meter – Precision, Safety, and Efficiency with Wireless Communication and Harmonic Analysis Capabilities

AUD $795.00 .( AUD $874.50 inc. GST )


For all your equipment calibration needs, visit our MyCalibration website.


Free Delivery on orders over $1000
Shipping time may vary for certain products*

Product Enquiry

If you would like more information regarding this product, simply email us here.

  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    Hioki logo

    Experience unparalleled precision with the Hioki CM4371-50 AC/DC Clamp Meter – your indispensable tool for all electrical measurements. With its CAT IV 600 V, CAT III 1000 V specifications, it assures safety alongside efficiency. This top-notch True RMS 600 A AC/DC Clamp Meter is ideal for open voltage inspections of solar panels, capable of measuring DC voltages up to 2000 V. Boost productivity with its automatic AC/DC function and revel in the accuracy of its inrush current measurement. Stay connected via Bluetooth® wireless communication and streamline your work with direct data transfer to your smart devices or Excel® files. Coupled with the free GENNECT Cross app, it simplifies harmonic analysis for efficient problem-solving. The built-in automatic hold function and integrated cap design of Test Lead L9300 ensure convenience and safety in your measurement tasks. Choose Hioki CM4371-50 for precision, productivity, and peace of mind.

    PDF download Hioki CM4371-50 User Manual   PDF download Hioki CM4371-50 Brochure



    Hioki CM4371-50 AC/DC Clamp Meter – Your Essential Tool for Accurate Measurements

    Are you searching for a reliable, top-notch instrument for your electrical measurements? Look no further than the Hioki CM4371-50 AC/DC Clamp Meter. This True RMS 600 A AC/DC Clamp Meter delivers safety and efficiency in the most challenging situations.

    Unleash the Power of Precision with Hioki CM4371-50

    The Hioki CM4371-50 boasts a range of key features that set it apart from the competition. Its CAT IV 600 V, CAT III 1000 V specifications ensure top-notch safety during usage. Plus, it can measure DC voltages up to 2000 V when paired with the optional DC High Voltage Probe P2000, making it ideal for open voltage inspections of solar panels.

    Enhance Your Work Efficiency

    With its Automatic AC/DC function, this clamp meter helps significantly boost your work productivity. Additionally, it can simultaneously measure inrush current in RMS and crest values, enabling accurate measurements where standard clamp-on meters may falter.

    Stay Connected with Wireless Communication

    The Hioki CM4371-50 also offers Bluetooth® wireless communication via the Wireless Adapter Z3210. This feature allows you to quickly transfer measurement data to your smartphone or tablet or directly into an Excel® file, increasing your work efficiency in the field.

    Excel® Direct Input Function

    See details about Wireless Adapter Z3210

    Simplify Your Harmonic Analysis

    By coupling the Hioki CM4371-50 with our free GENNECT Cross app, you can perform simple harmonic analysis, which is crucial for problem analysis of power supply systems.

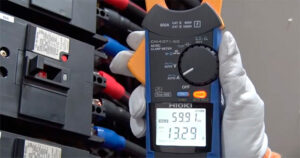

    Experience Convenience in Repeated Measurements

    The automatic hold function of this clamp meter ensures convenience during repeated measurement and recording tasks. When the measurement value stabilises, it is automatically held until the next measurement.

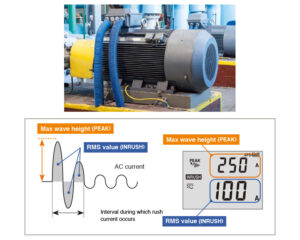

    Assess transient currents at motor startup

    Hioki CM4371-50 clamp meters are capable of measuring both RMS inrush current and maximum crest values during motor startup and welding currents. These meters automatically detect the duration of the inrush current, which can range from several dozen milliseconds to several hundred milliseconds, resulting in more accurate measurements compared to standard clamp-on meters with a fixed 100 ms measurement interval. Invest in our clamp meters for reliable and precise measurements in various applications.

    Enjoy More Features with Hioki CM4371-50

    The Hioki CM4371-50 is also equipped with Test Lead L9300 that incorporates integrated caps for greater safety. This design lets you change the measurement category by merely sliding the test lead’s protective finger guard.

    Dive into the world of precise measurements with the Hioki CM4371-50 AC/DC Clamp Meter.

    Weight .5 kg

    Specifications

    Basic specifications

    Accuracy guaranteed: 1 year
    DC Current range 20.00 A/600.0 A, Basic accuracy: ±1.3% rdg. ±0.08 A (20 A range)
    AC Current range 20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy: 45-66 Hz: ±1.3% rdg. ±0.08 A (at 20 A)
    Crest factor 20.00 A range: 7.5
    600.0 A range: 3 or less
    DC+AC Current range 20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±0.13 A (at 20 A)
    DC Voltage range 600.0 mV to 1000 V (When using P2000: 600.0 V to 2000 V)
    AC Voltage range 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45 – 66 Hz: ±0.9% rdg. ±0.003 V (at 6 V)
    DC+AC Voltage range 6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45 – 66 Hz: ±1.0% rdg. ±0.013 V (at 6 V)
    Resistance range 600.0 Ω to 6.000 MΩ, 5 ranges, Basic accuracy: ±0.7% rdg. ±0.5 Ω (at 600 Ω)
    Capacitance range 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±0.005 μF (at 1 μF)
    Frequency range 9.999 Hz to 999.9 Hz, 3 ranges, Basic accuracy: ±0.1% rdg. ±0.003 Hz (at 9.999 Hz)
    Temperature (K) -40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C
    Voltage detection Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz
    Harmonic levels [With Z3210 installed] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
    *Harmonics can be displayed with our free app GENNECT Cross.
    Other functions DC power, Continuity check, Diode check, Automatic AC/DC detection, Pass/fail judgement function of DC A and DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Low-pass filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment
    Dustproof, waterproof IP20 (Voltage measurement in a completely dry condition. When jaw closes)
    IP54 (While in storage)
    Power supply LR03 Alkaline battery ×2
    Continuous use: 40 hr (without Z3210 installed), 20 hr. (with Z3210 installed and using wireless communications)
    Other conditions: 10 A AC measurement, backlight off, 23°C reference value
    Core jaw diameter φ33 mm (1.30 in), Jaw dimension: 69 mm (2.72 in) W× 14 mm (0.55 in) D
    Dimensions and mass 65 mm (2.56 in) W × 215 mm (8.46 in) H × 35 mm (1.38 in) D mm, 340 g (12.0 oz)
    Included accessories Test Lead L9300, Carrying Case C0203, LR03 Alkaline battery ×2, Instruction Manual×2, Operating Precautions ×1
